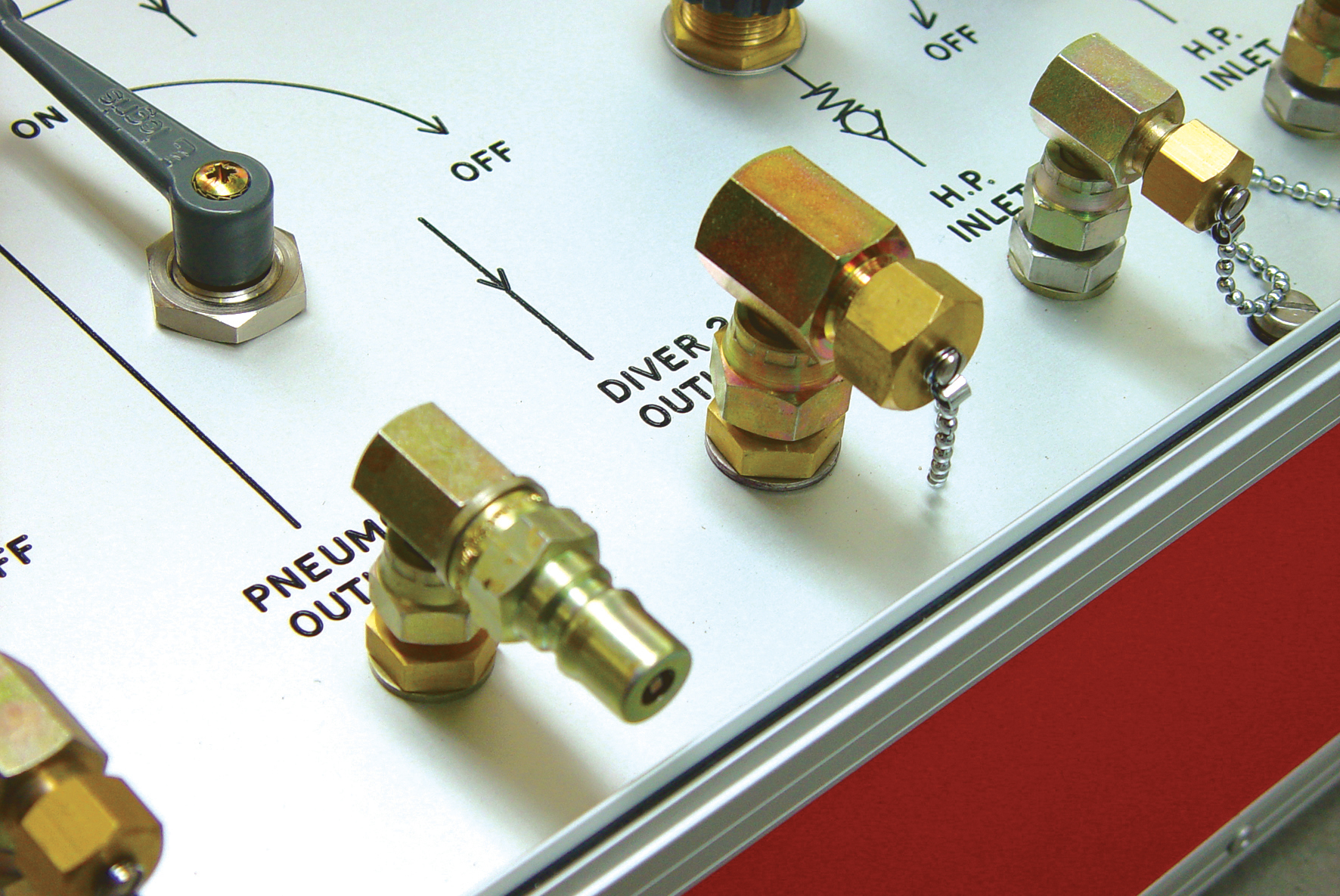

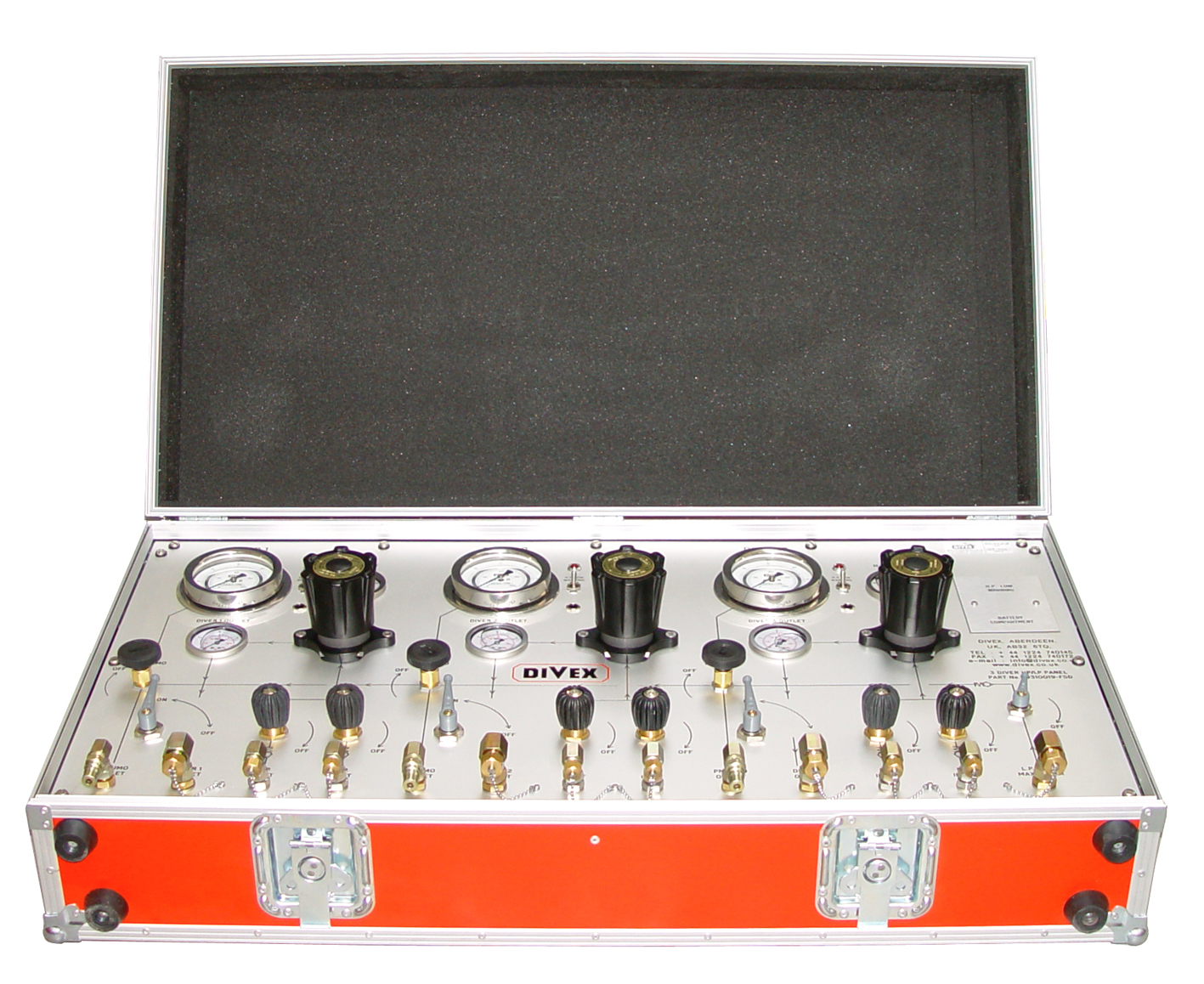

3 diver HP/LP control panel
A portable carry case mounted, uncomplicated Divex three diver control panel with independent air supplies for each diver backed up by an additional low pressure supply connection.
Each diver has:
- Two high pressure (HP) inlets (1/4 BSP male) supplying air via HP cylinders allowing change over without interruption during activities.
- One high flow HP regulator reducing HP inlet gas pressures of up to 350 bar/5000 PSI down to low pressure (LP) (0-30 bar) supply to diver.
- HP inlet pressure gauge (400 bar/6000 PSI).
- LP outlet pressure gauge (21 bar/300 PSI).
- 4” 0-60 Msw (200 ft) pneumo depth gauge.
- Diver air supply outlet (3/8” BSP).
- Diver pneumo outlet (1/4” BSP).
- Electronic audio/visual alarm to warn/alert surface tender when HP air supply reaches preset limit (50 bar).
| Divex 3 diver HP / LP control panel | Divex 3 diver HP / LP control panel | Divex 3 diver HP / LP control panel |
|
|
|
|
|
|
|
|
Length |
42” |
|
Width |
34” |
|
Height |
10” |
|
Approx weight |
52kgs |
| Item | Order Code |
|
Divex 3 diver HP/LP control panel |
DD310019 |
| Document | Document type | Download |
| Divex 3 diver HP / LP control panel | Datasheet | PP-MDS-580-R0 |
| Three diver, three reducer HP/LP air supply panel with low HP warning in transit case (Part number: DD310019) | Operation and maintenance |
| Divex 3 diver HP / LP control panel | Divex 3 diver HP / LP control panel | Divex 3 diver HP / LP control panel |
|
|
|
|
|
|
|
|
Length |
42” |
|
Width |
34” |
|
Height |
10” |
|
Approx weight |
52kgs |
| Item | Order Code |
|
Divex 3 diver HP/LP control panel |
DD310019 |
| Document | Document type | Download |
| Divex 3 diver HP / LP control panel | Datasheet | PP-MDS-580-R0 |
| Three diver, three reducer HP/LP air supply panel with low HP warning in transit case (Part number: DD310019) | Operation and maintenance |
