Torpedo Seal

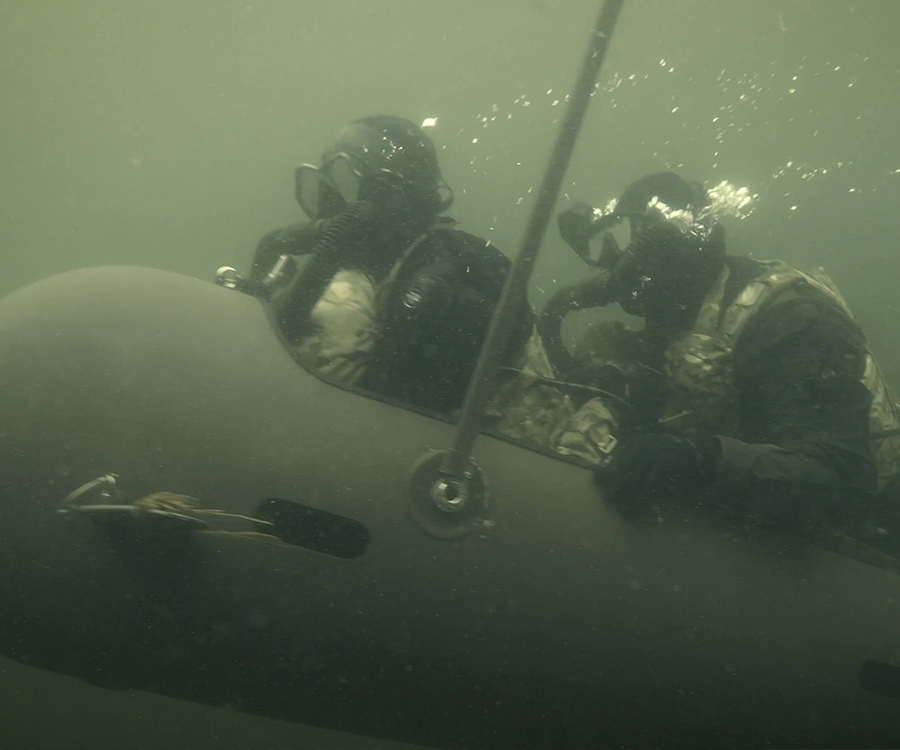

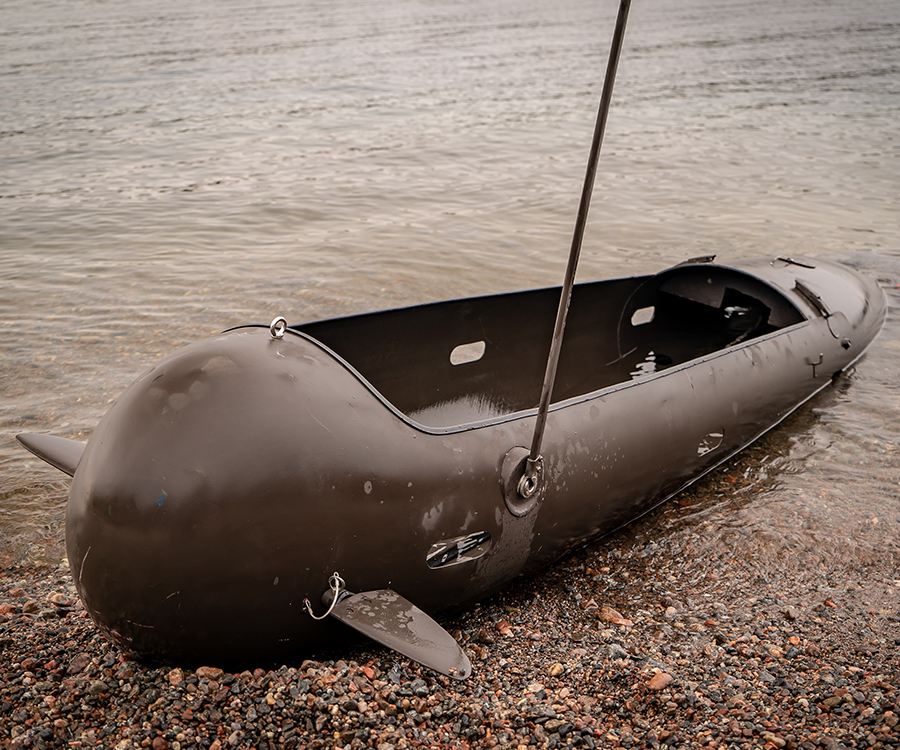

The Torpedo Seal's hydro dynamic shape and internal space enables 2 divers with combat gear and mission essential equipment to be transported inside the hull protected from the streaming water.

It is then able to transport 2 divers and equipment, fully submerged, over a range of 10nm.

Torpedo Seal may also be easily stowed within the multi-purpose tubes being designed into future submarine designs, or beneath the outer casing of the submarine.







Torpedo Seal is controlled by a single pilot. It also accommodates 1 passenger and equipment. The mission profile may follow one of these examples:


  • Extend the operating range of a combat team
  • Underwater survey and reconnaissance
  • Delivery of explosive ordnance
  • Counter-narcotics and harbour patrol





Air Deployment Options

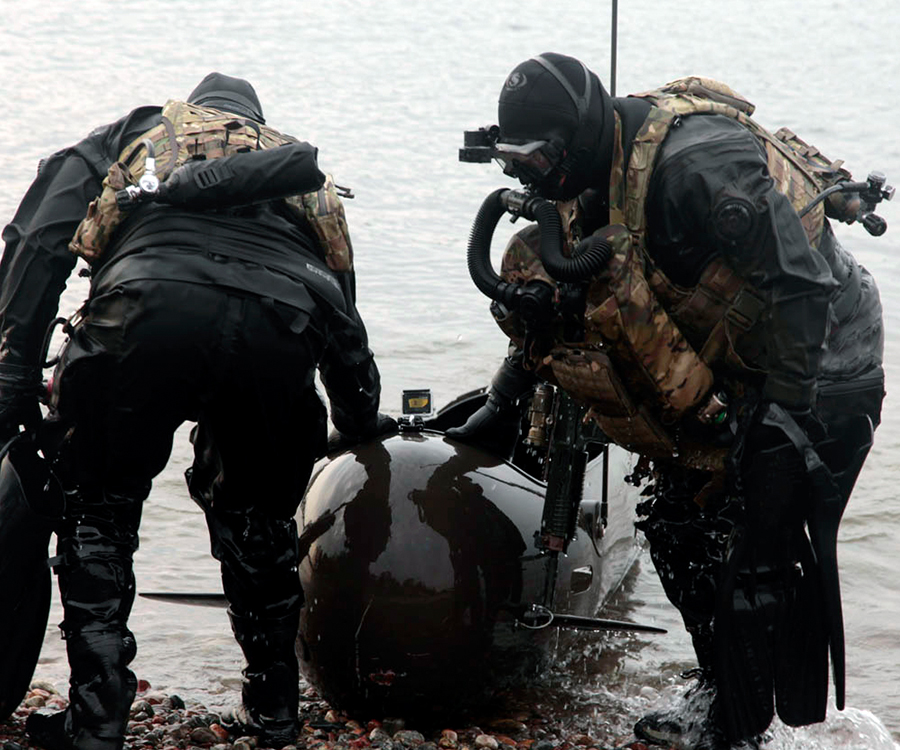

In addition to its primary insertion method, Torpedo Seal may also be launched from any surface craft, underslung by rotary-wing aircraft or stored beneath the outer casing of a submarine.





Electrical Propulsion


Torpedo Seal carries an advanced Lithium Polymer battery coupled with one or two thrusters, depending on customer requirements.





SINC System


The Steering Information Navigation Control (SINC) system is common to all vehicles in the JFD range.

In Torpedo Seal, the system provides operators with real time location, sensor and communications data.



Name Type PDF
Torpedo Seal Specification Booklet Tech spec document.png
