Portable hyperbaric rescue facility

Our IMCA compliant 18-man Portable Hyperbaric Reception Facility (HRF) can support diving operations across the whole of the North Sea.


Suitable for accommodating divers evacuated from a diving system by means of a Self Propelled Hyperbaric Lifeboat (SPHL) or Hyperbaric Rescue Chamber (HRC), this Portable HRF provides a practical hyperbaric rescue solution for operators working in remote locations.

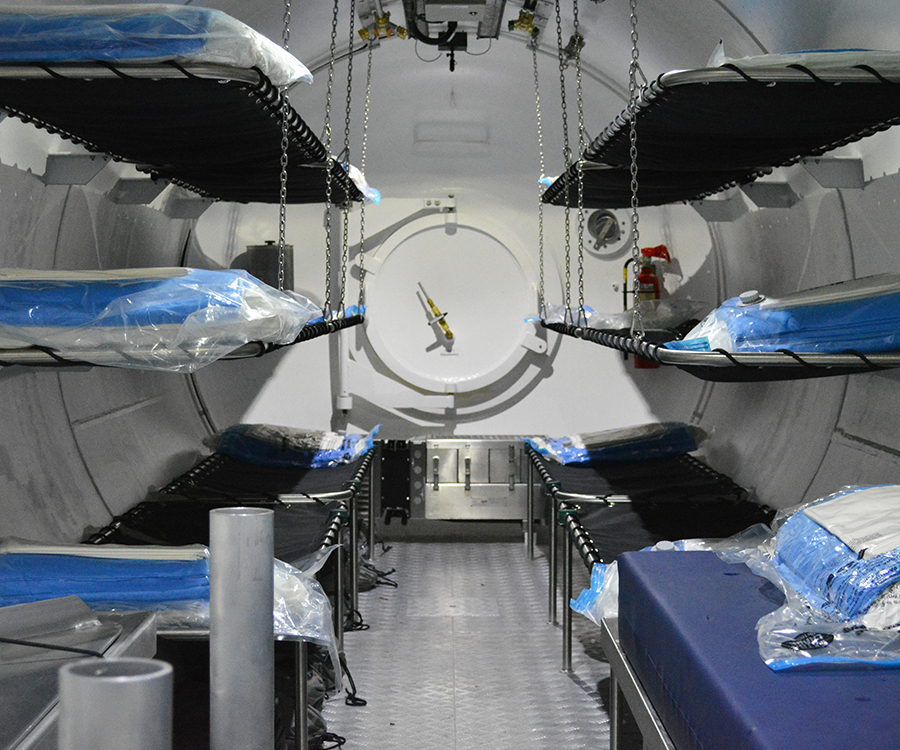

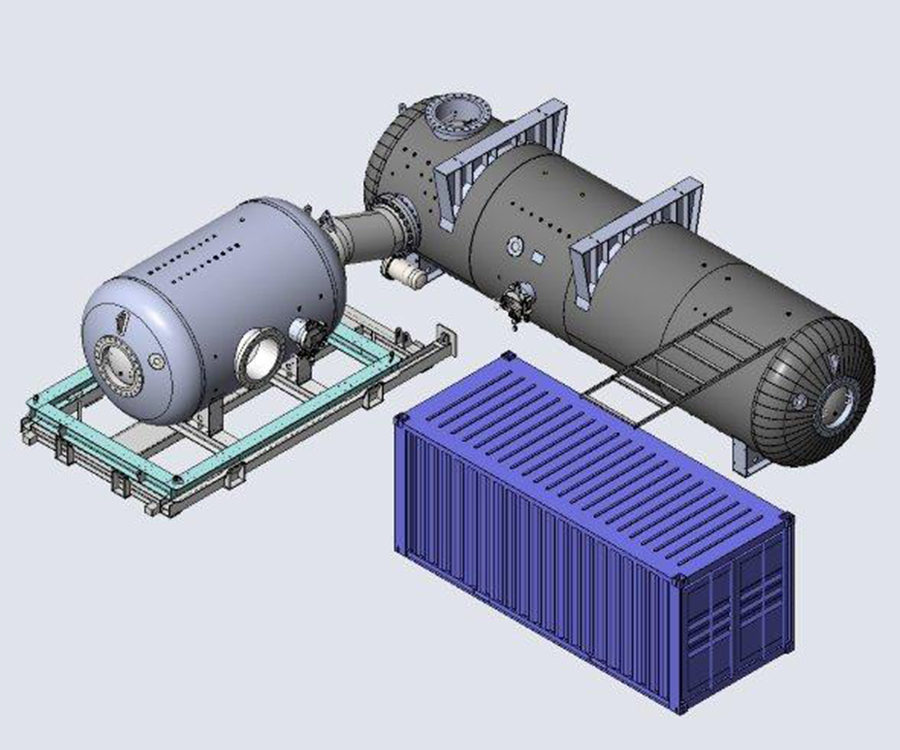

The HRF was designed and manufactured by JFD. DDC1 (12.17m (L)) is a twin lock skid mounted and enclosed saturation living chamber consisting of the main lock (ML) and entry lock (EL). DDC1 has a depth capacity of 300m and allows habitation for up to 18 rescued divers during decompression and a medical attendant if required.

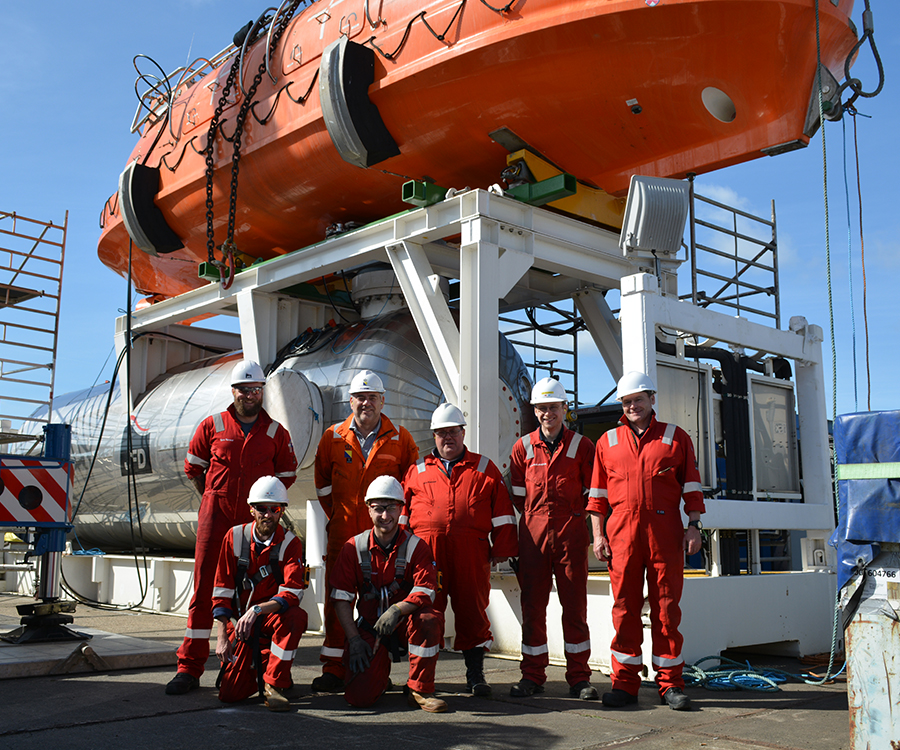

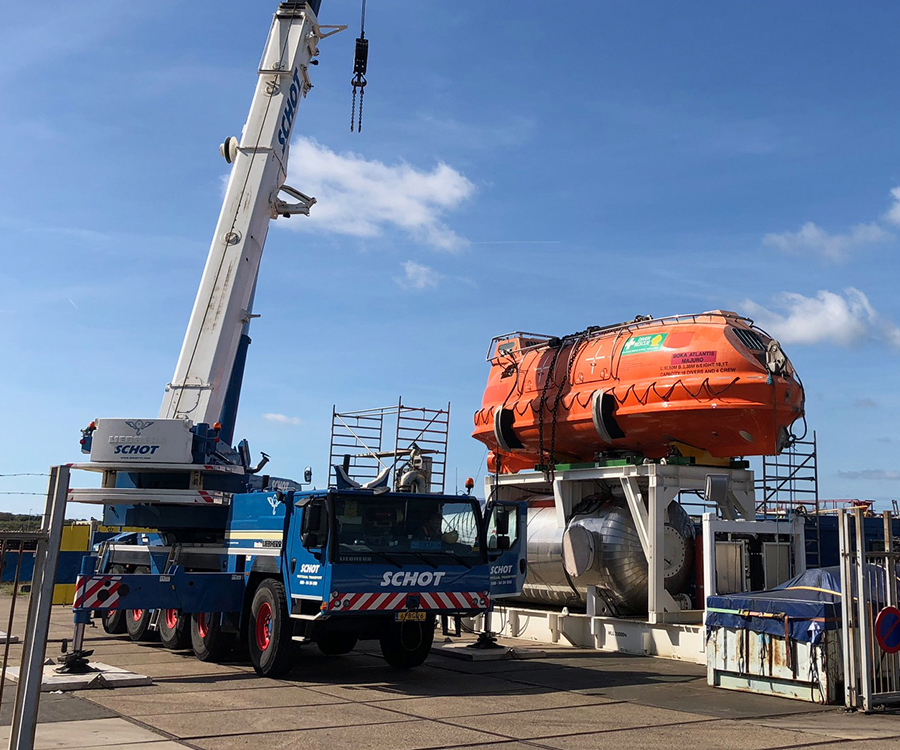

 Bottom mate SPHL

 Side mate HRC



View full image

Portable HRF PRODUCT IMAGE1.jpg

View full image

Portable HRF PRODUCT IMAGE2.jpg

View full image

Portable HRF PRODUCT IMAGE3.jpg

View full image

Portable HRF PRODUCT IMAGE5.jpg

View full image

Portable HRF PRODUCT IMAGE4.jpg

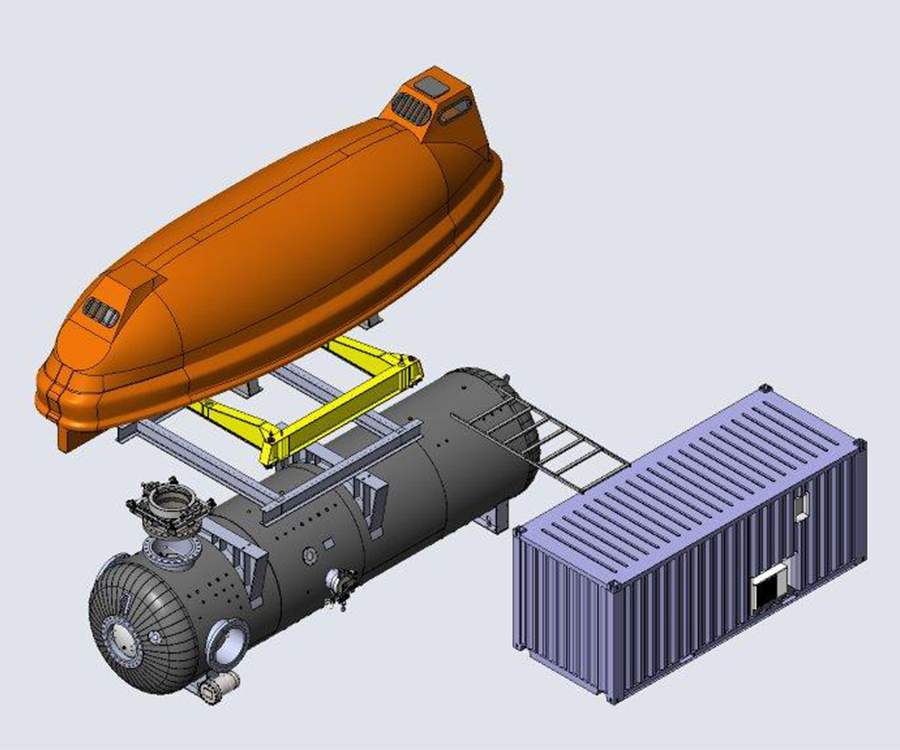

The HRF system is designed to be mated to a bottom or side-mated SPHL, or a side-mated HRC.

JFD  hold Lloyds approved forgings and plate in stock to allow suitable spool pieces and clamps to be rapidly fabricated to suit clients particular hyperbaric evacuation chambers.



  • Chamber designed under PD5500 pressure vessel design code, and manufactured under full Lloyds survey

  • Viewports designed and certified toASME PVHO-1-2007

  • Full Lloyds design review and manufacture certification to Lloyds Rules for Submersibles and Diving Systems July 2016

  • Compliant to IMCA D024 Design for Saturation Diving Systems (Bell) July 2014 (where appropriate)

  • Compliant to IMCA D053 Design for the hyperbaric reception facility (HRF) forming part of a hyperbaric evacuation system (HES) April 2014

  • Full system certification and manual package

  • All electrical wiring to Australian Standards



Weight:

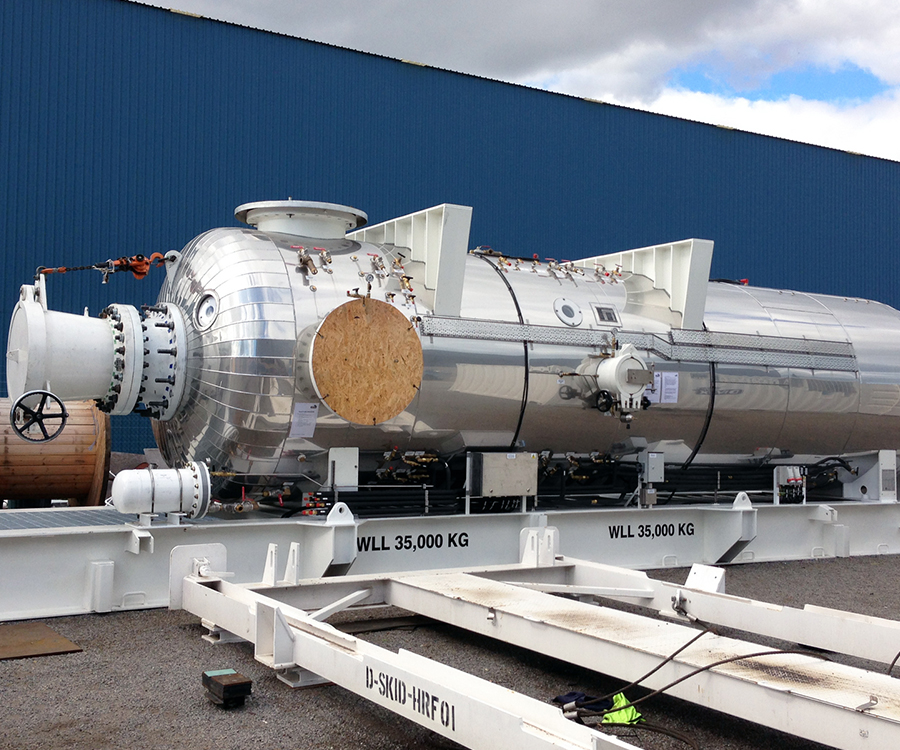

  • 40ft flat rack with DDC: 32te
  • Control Cab Container: 12te







Transportability

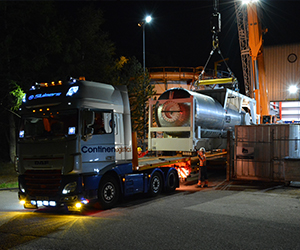

The control container is a DNV 2.7-1 offshore rated container. The chamber is mounted in a 40ft modified ISO flatrack for ease of transportation.



The scope of supply includes:

  • HRF Chamber and flatrack skid fully outfitted

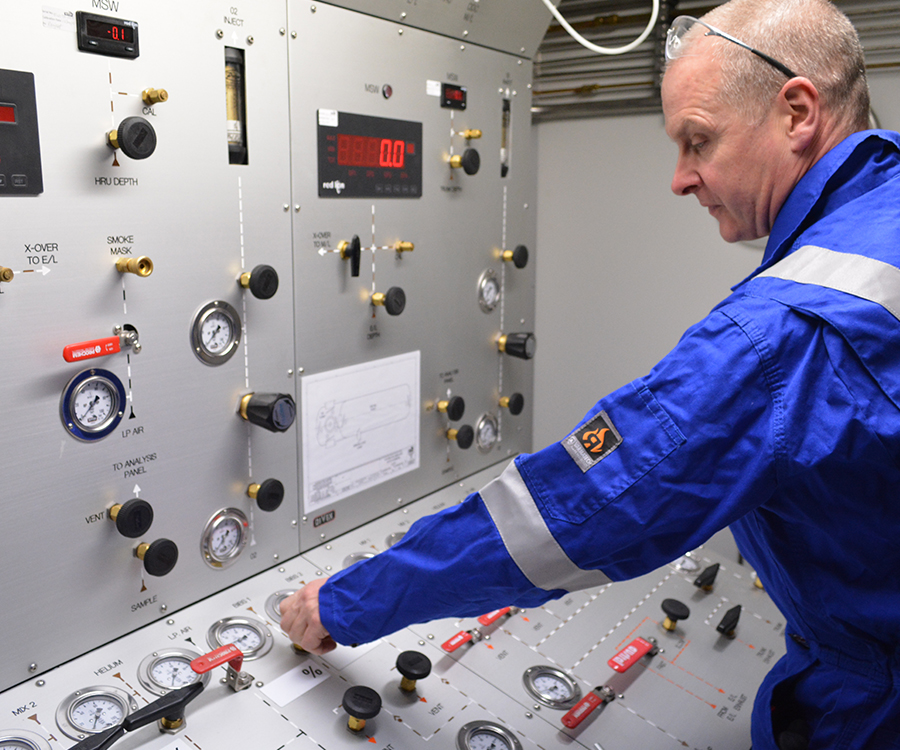

  • HRF Control van complete
  • Interconnecting hoses and cables
  • Certification and manual package



The scope of supply excludes:

  • Manufacture of spoolpieces and clamps to suit client
  • Hyperbaric Evacuation Chamber / SPHL
  • Manufacture of reception skid if required to suit client
  • Hyperbaric Evacuation Chamber / SPHL
