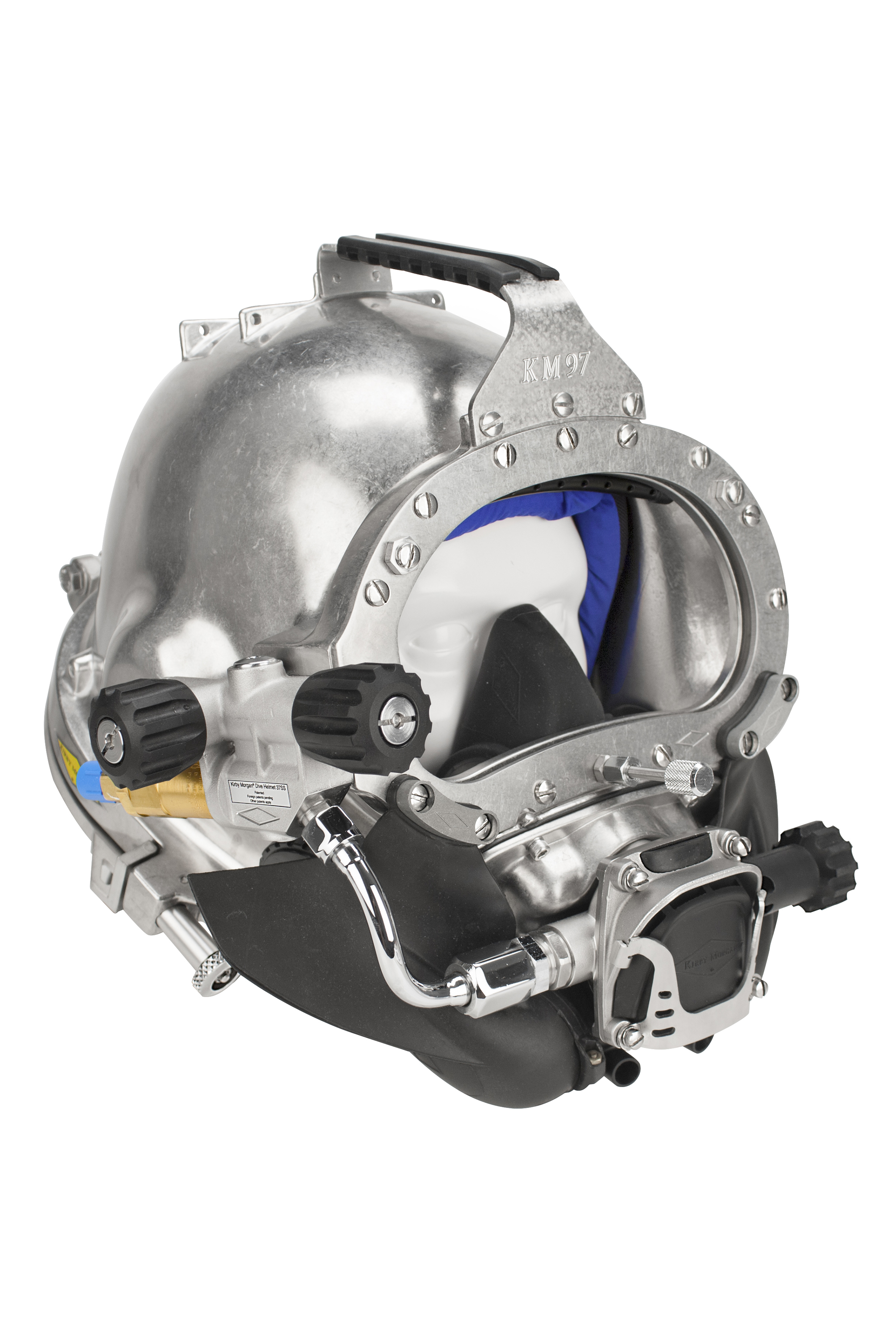

Kirby Morgan® 97
The Kirby Morgan® 97 stainless steel helmet features superior breathing performance from the new 455 balanced regulator.
The 455 is an all stainless steel regulator with superior breathing performance and the added advantage of compatibility with the SL 27, 17C, KM 37, KM 37SS, KM 57 helmets as well as the KMB 18 & 28 Band Masks. The overall performance of this regulator is outstanding and sets a new performance standard for commercial diving helmets and band masks.
The KM 97 features a quick change communications module, available with either bare wire posts or waterproof connector, and allows for easy, efficient maintenance of the communications. This same communications system is found in all our helmet models (with the exception of the SL 17B and 17C).
The advantages of this stainless steel helmet include the following: Rugged helmet shell and other components No refinishing required if the surface is scratched or gouged Elimination of threaded inserts for securing port retainer to helmet shell.
| Kirby Morgan® 97 helmet | The 455 balanced regulator | Air train | Auxiliary port | Defogging steady flow valve | Emergency (EGS) valve | Gas supply non-return valve | Handle | Nose block | Rapid change modular communications systems | Side block | Silicone oral nasal mask | Stainless steel shell | Whisker wings |
|
The Kirby Morgan® 97 helmet has been tested and conforms to the performance requirements as set forth in Annex II of Directive 89/686/EEC and, as far as applicable, the EN 15333-1 (class B). It is fully CE marked with balanced 455 demand regulator and oral nasal mask P/N 510-747. |

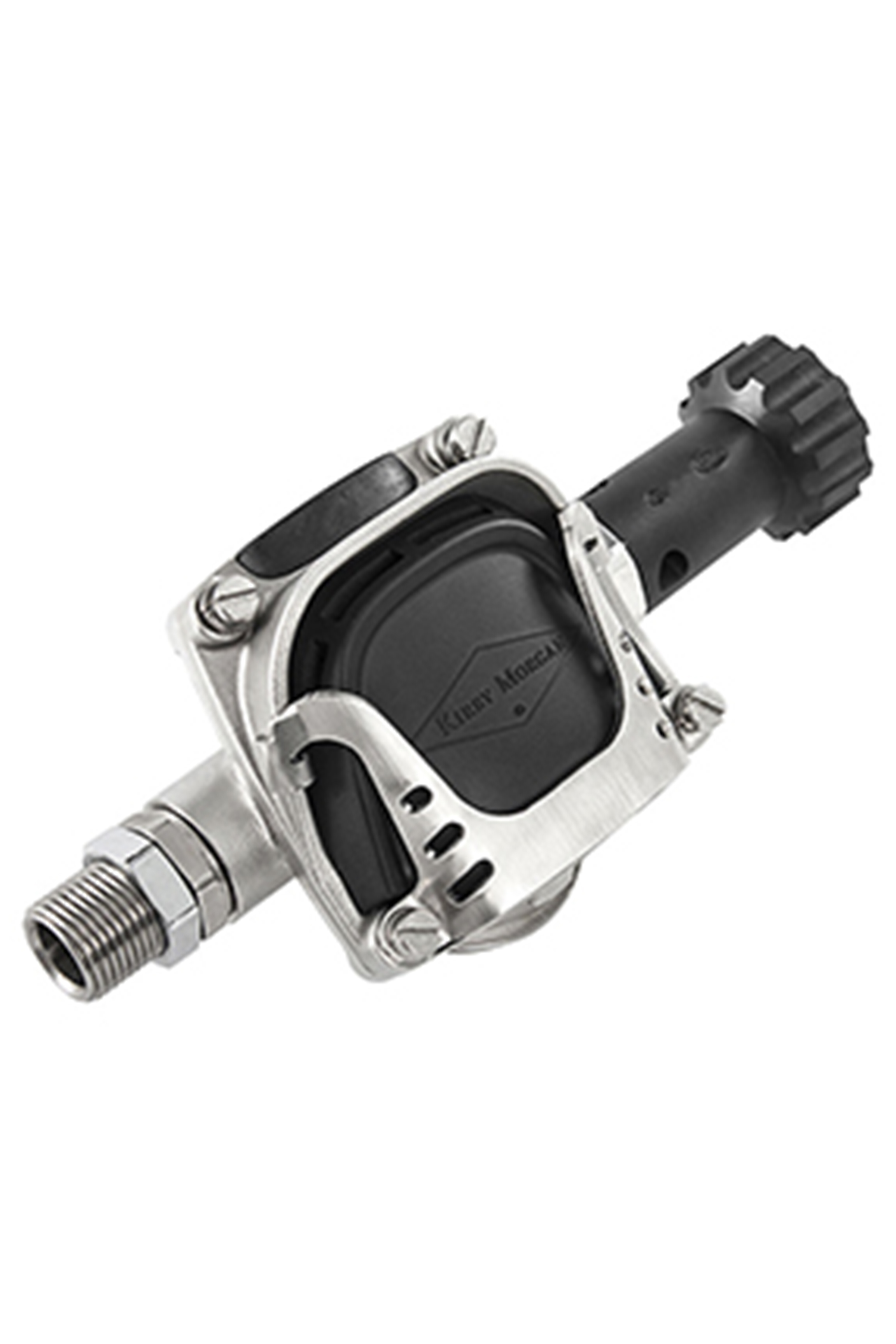

The 455 Balanced regulator sets a milestone in surface supplied breathing performance and will soon be compatible with all Kirby Morgan Helmets and Band Masks that feature the SuperFlow® 350 regulator. The regulator body is made of 316 stainless steel, as are all its other metallic components. |

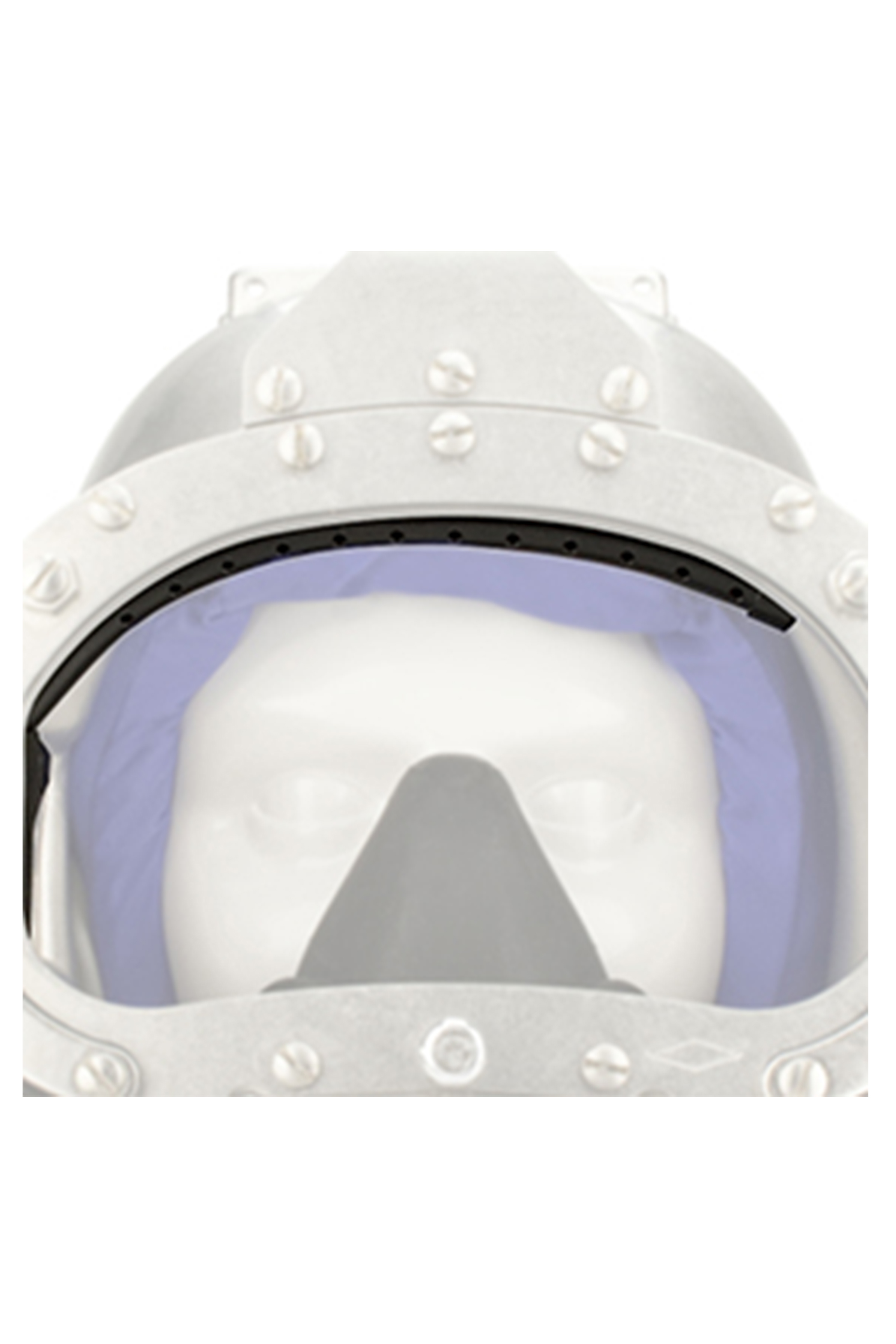

The air train diffuses incoming breathing air/gas onto the face port/lens to defog and ventilate. |
The auxiliary port will allow for future add-ons and modifications to the stainless steel helmets. It is located on the port side of the shell as shown below. |

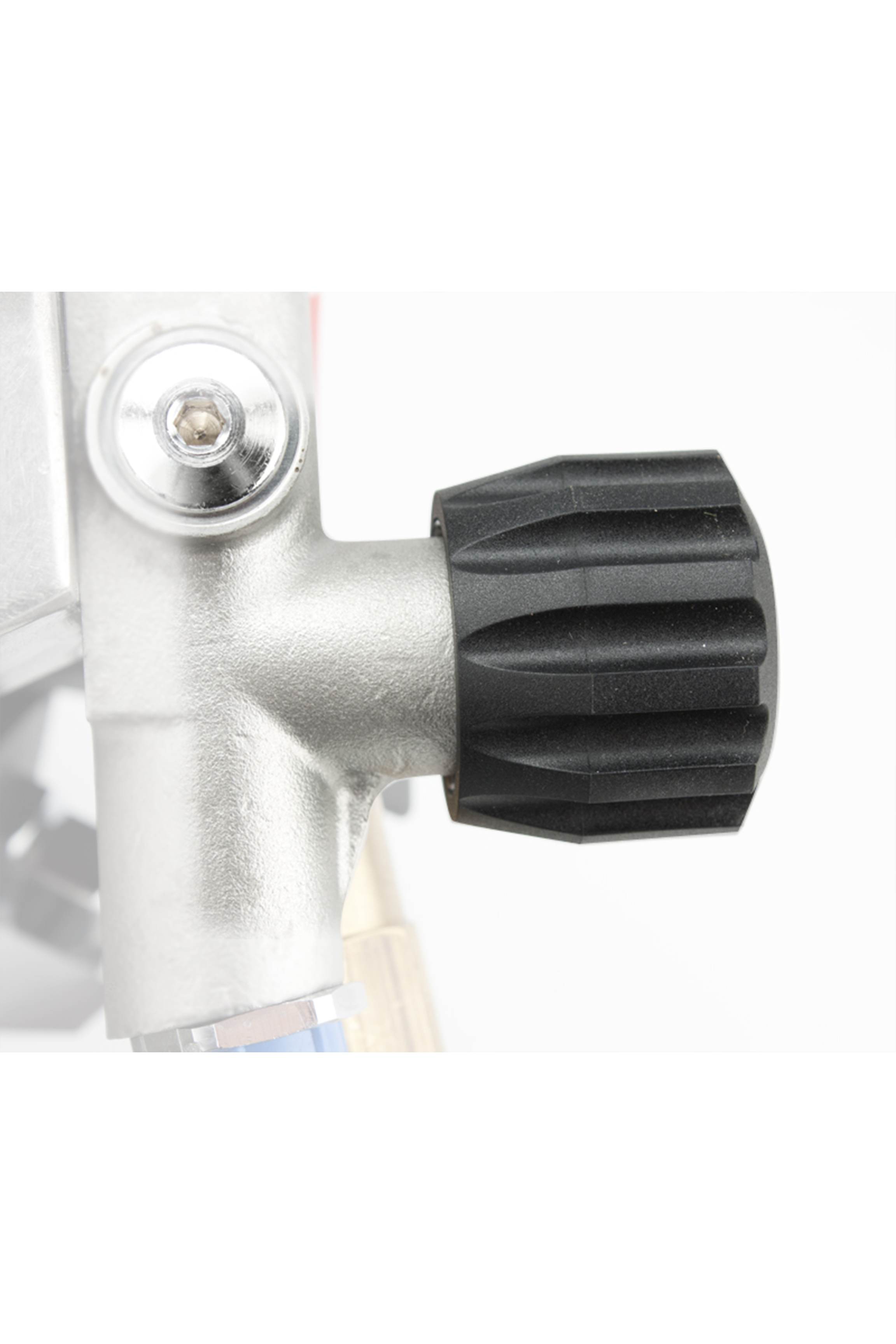

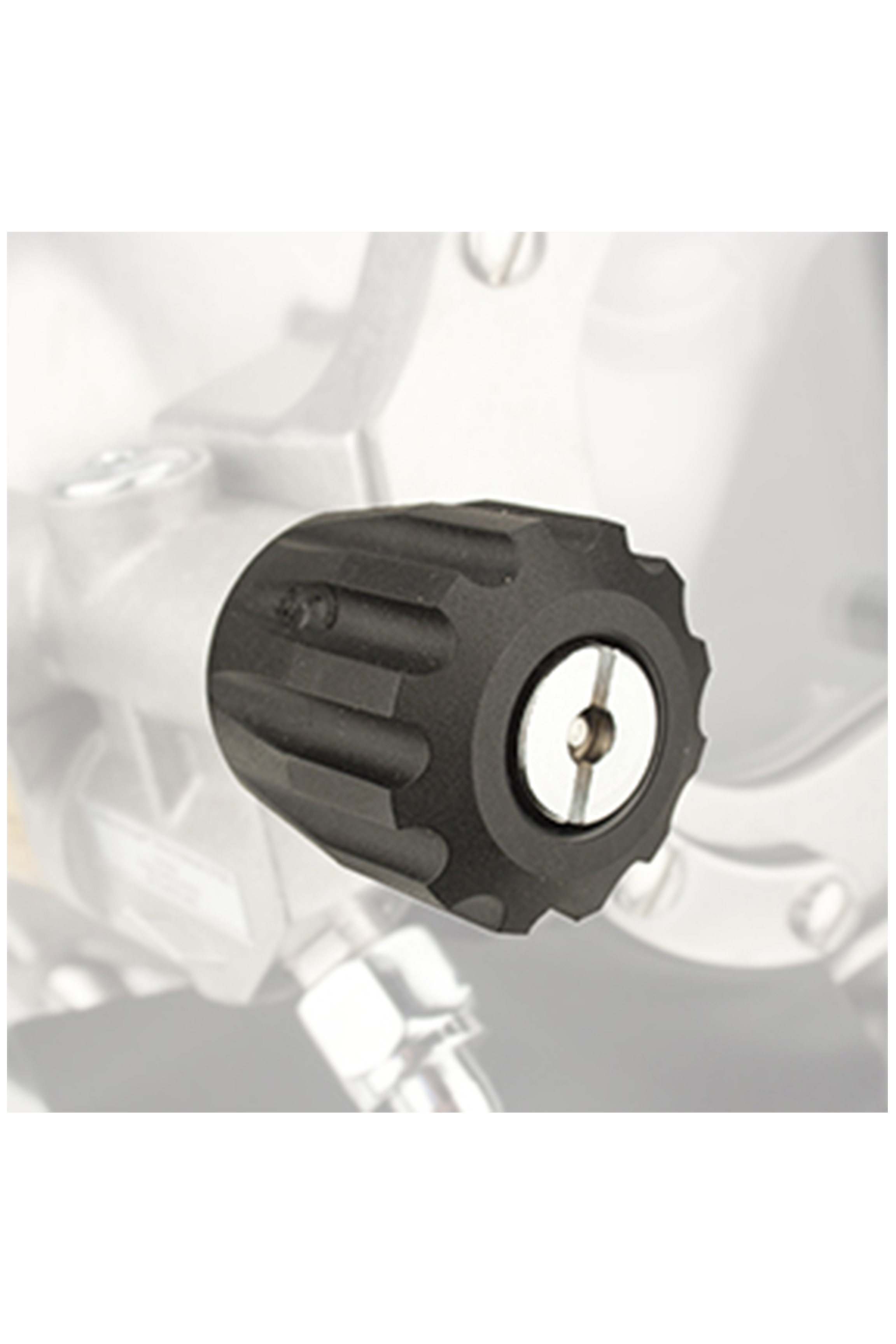

Provides an additional flow of gas into the helmet for ventilation and defogging. |
Emergency (EGS) Valve supplies backup breathing gas to the diver. This valve is an integral, built in part of the stainless steel sideblock. |

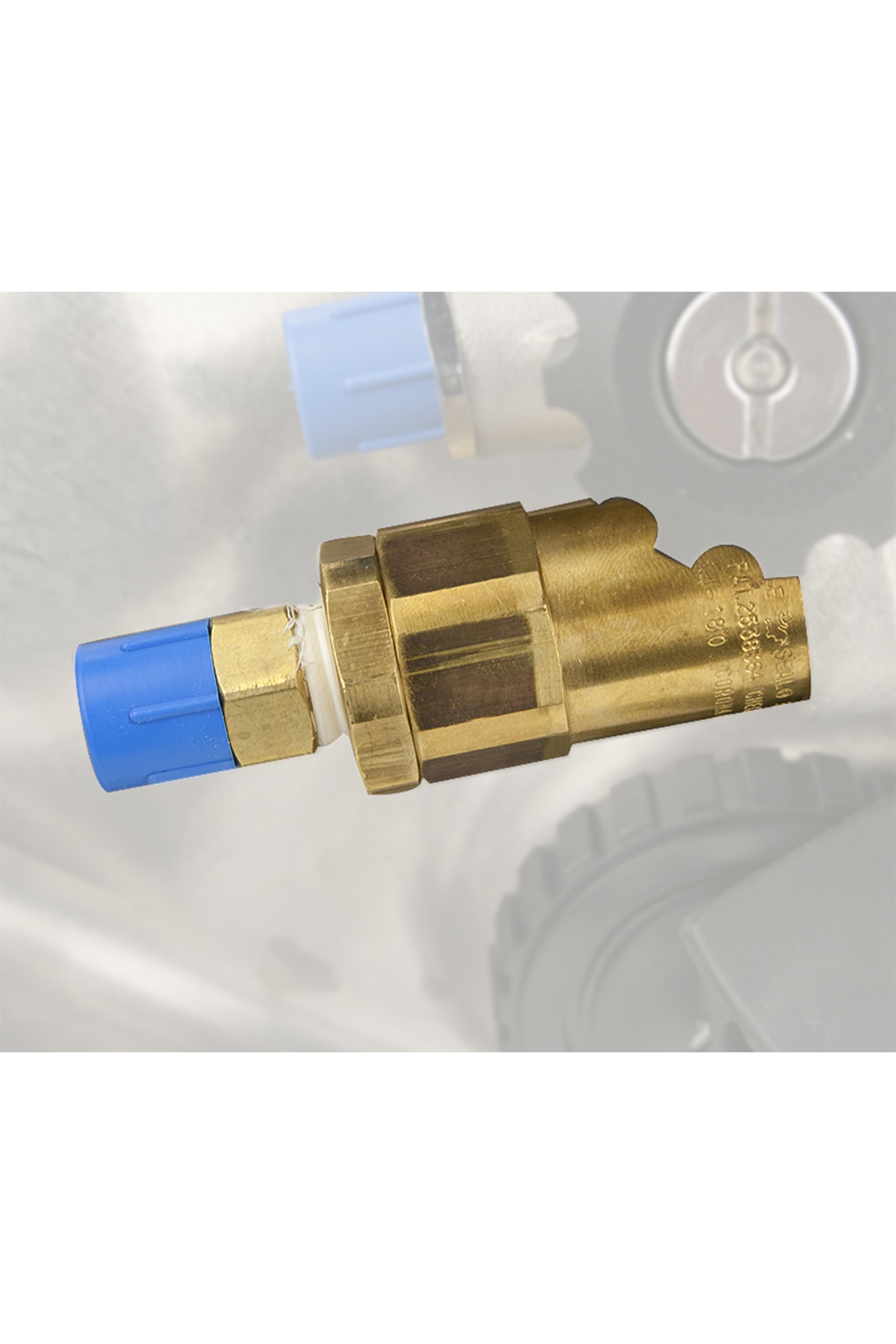

Commercial Rated™, It prevents loss of gas pressure in the event of umbilical damage. |

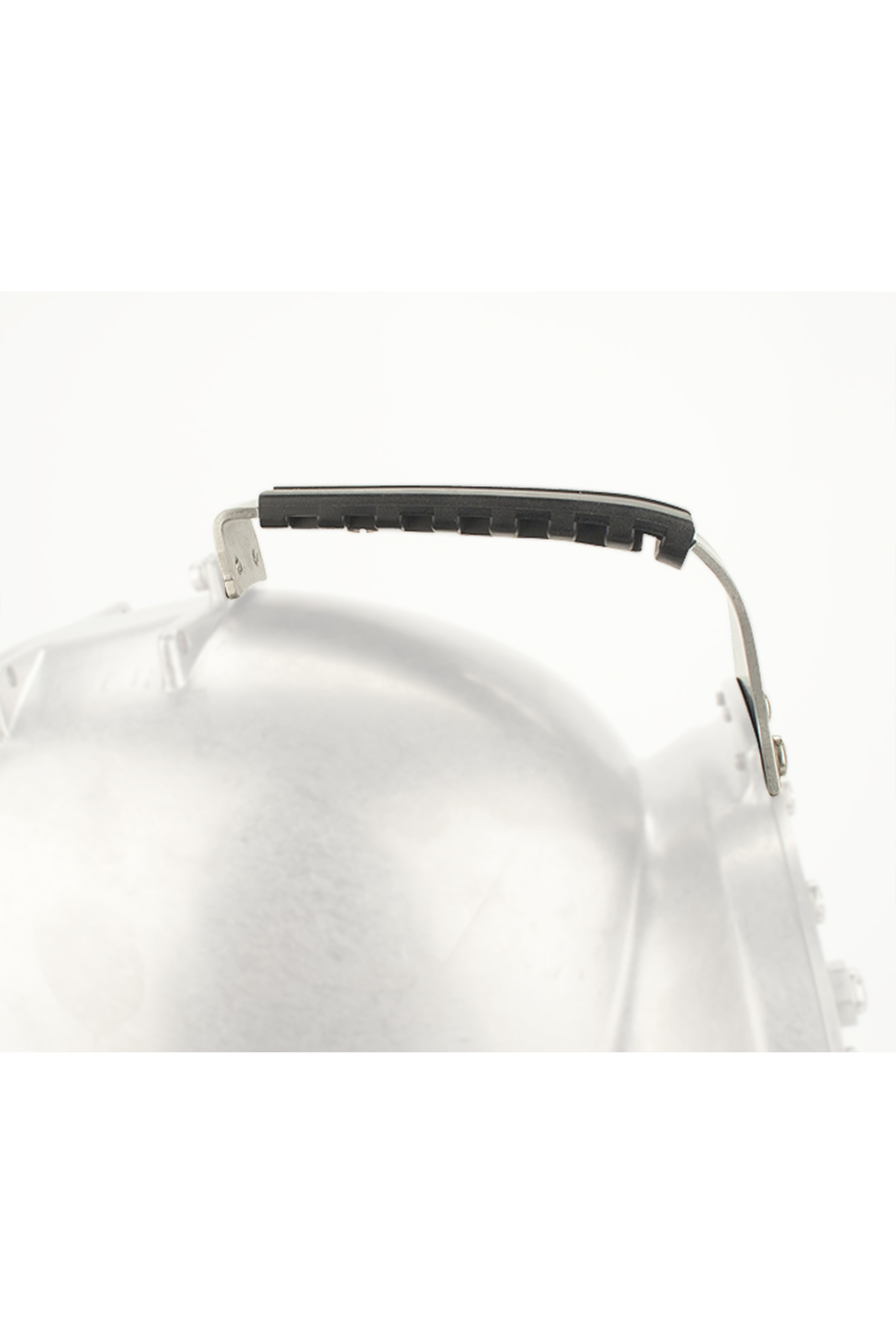

Removable Grip and handle. Handle can be removed without breaking seals, making it quick and easy to attach accessories. |

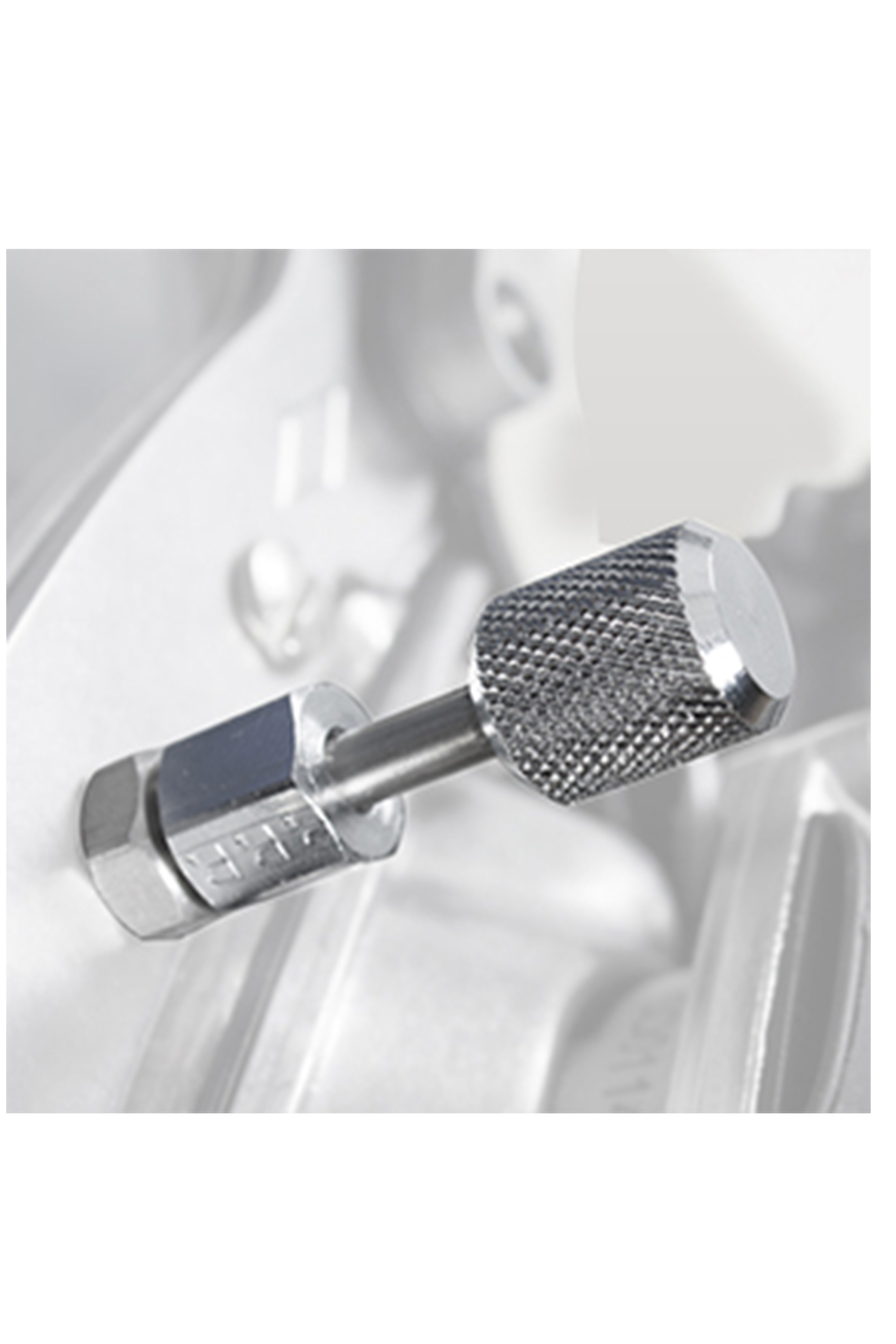

Nose Block Device allows the diver to block the nose to equalize ears. |

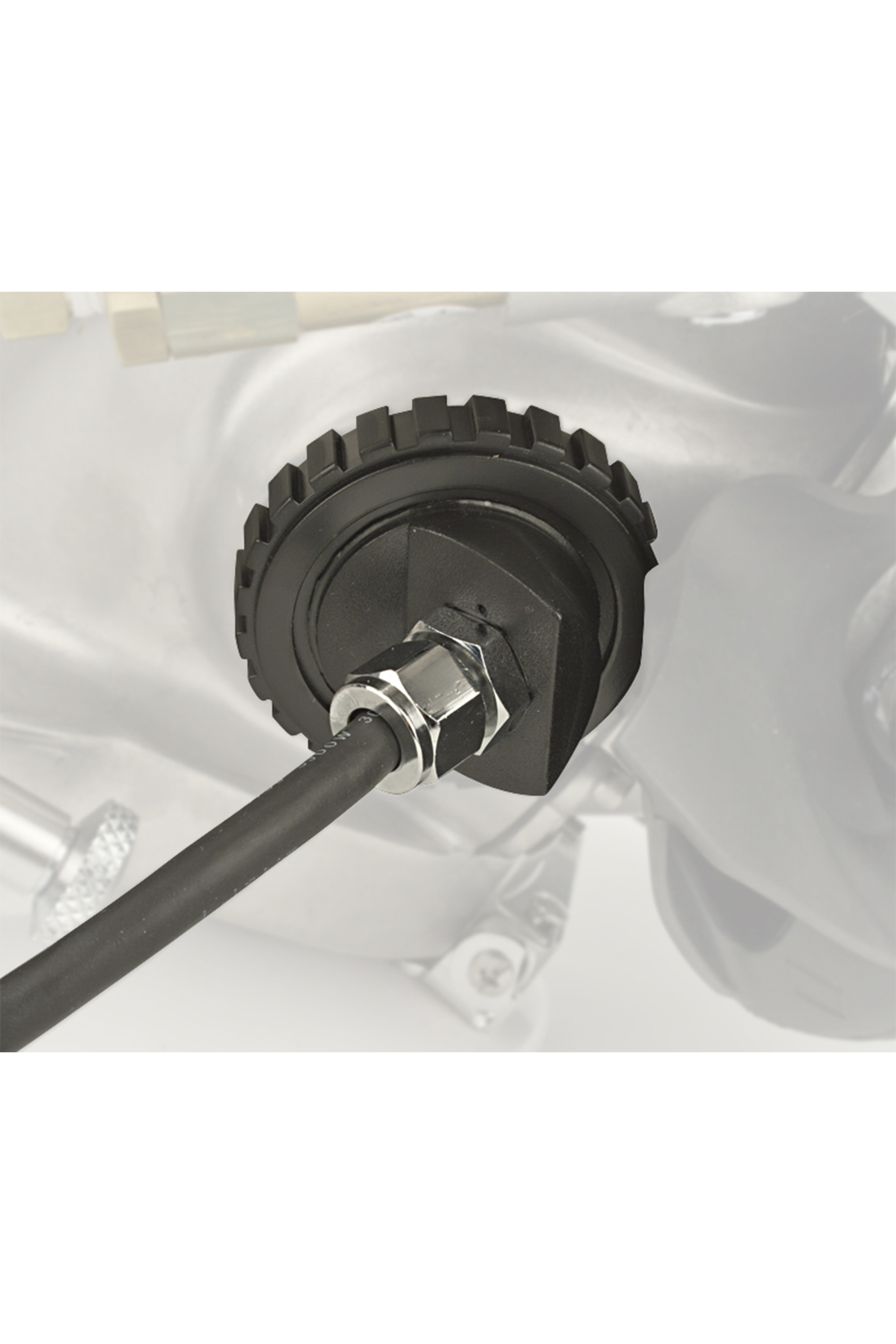

Because the module is easily removed the helmet, repair or replacement of communications parts is quick and trouble free. It is available with either a male waterproof connector or a bare wire post connection. |

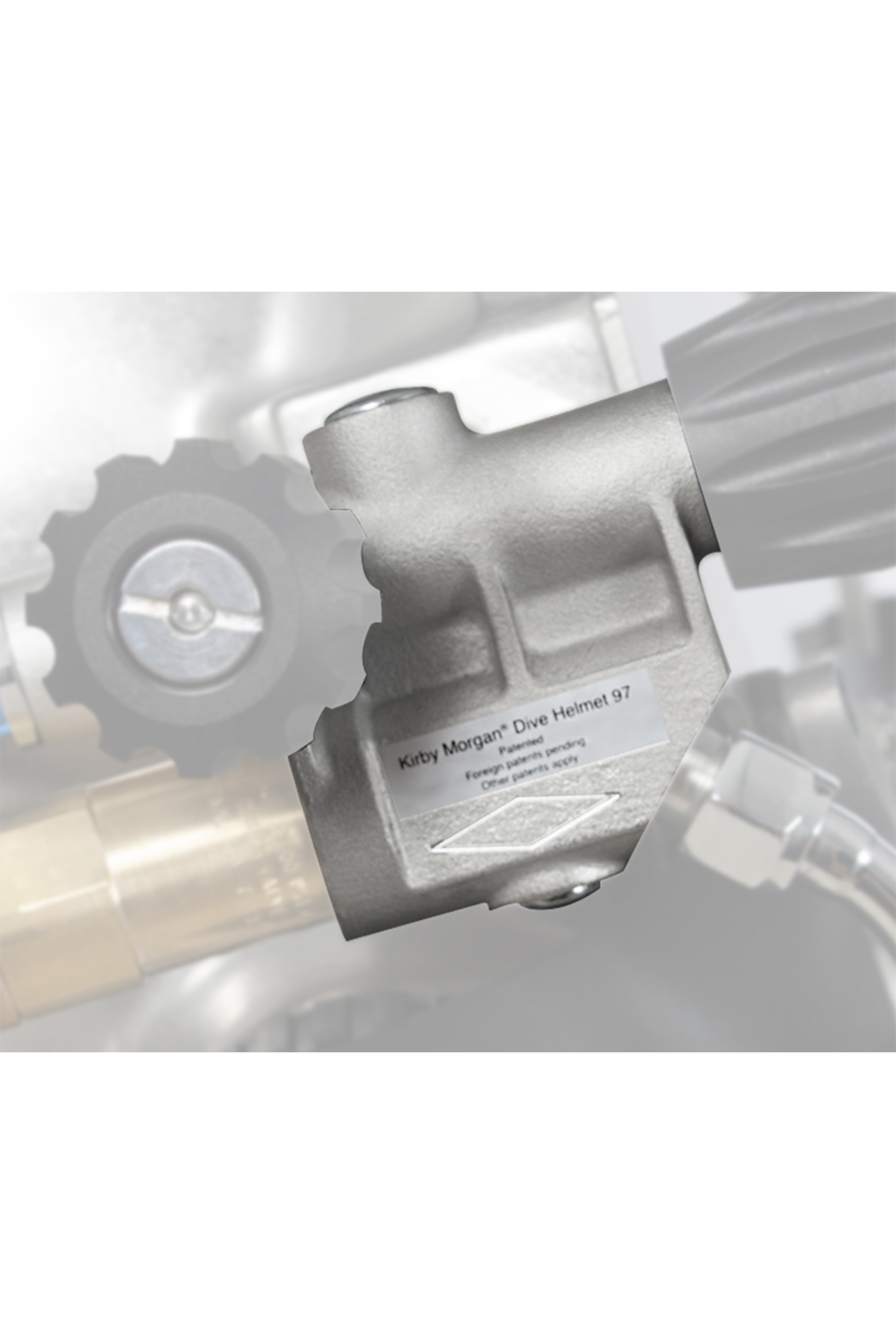

Multi use side block has additional ports built in to provide controlled air flow, if needed. The stainless steel sideblock has a built in EGS. |

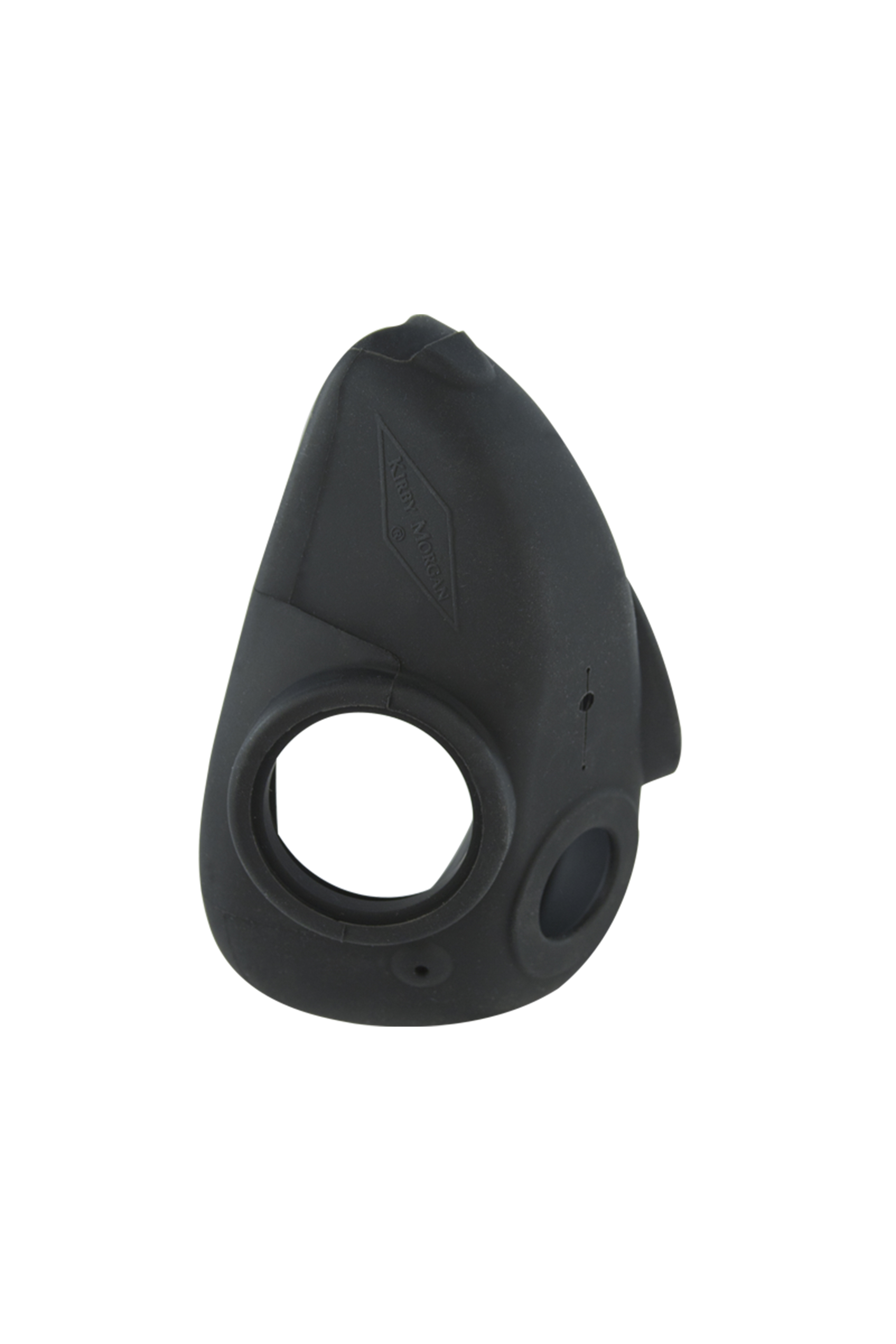

Made of a superior silicone material which is hypo-allergenic and has a longer work life than latex. |

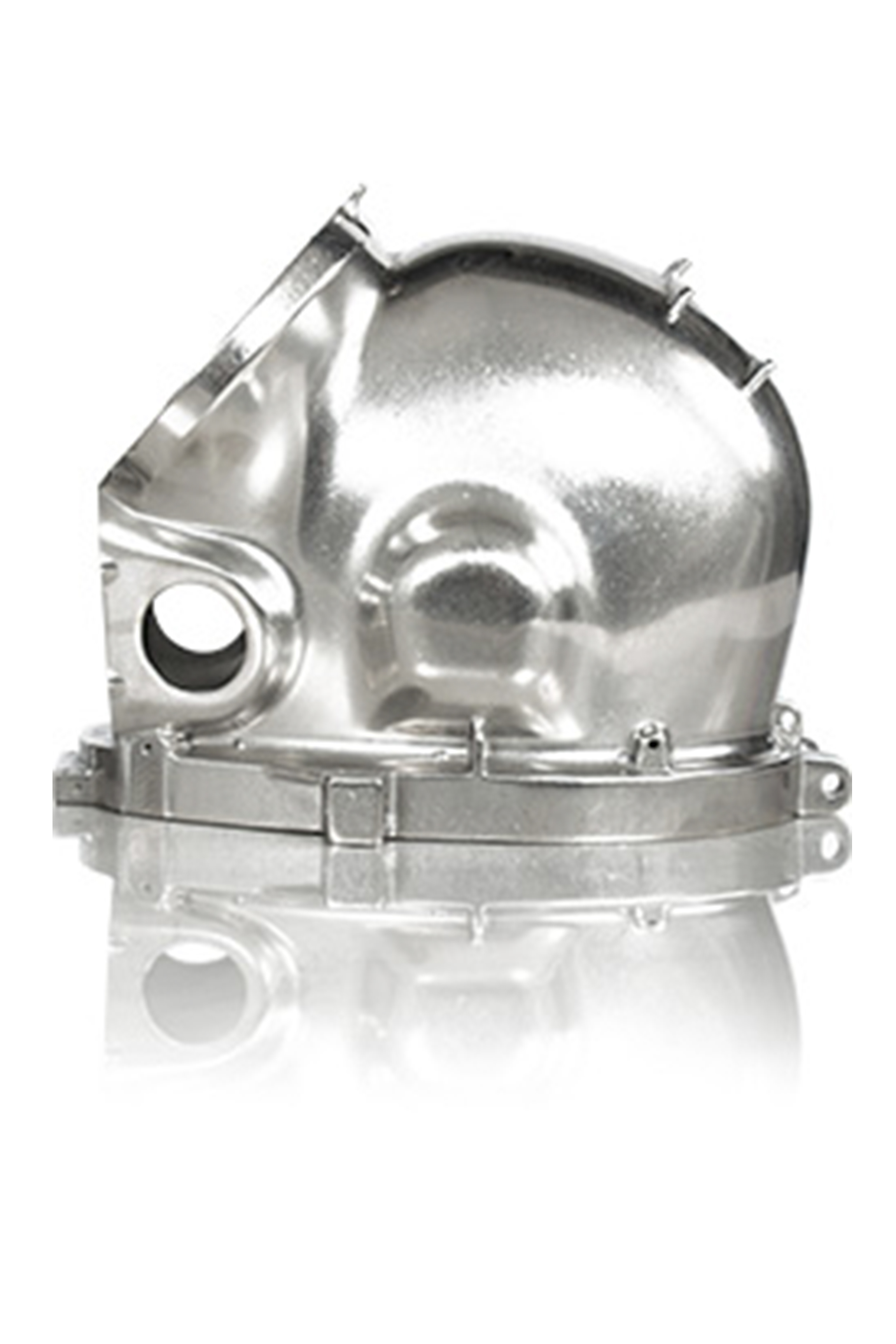

After x-ray inspection, each 316 stainless steel shell, is precision CNC machined to tight tolerances, to ensure proper fit to all other mating parts. The shell is durable and easy to maintain. Easily cleaned using a Scotch Brite® or similar type cleaning pad. |

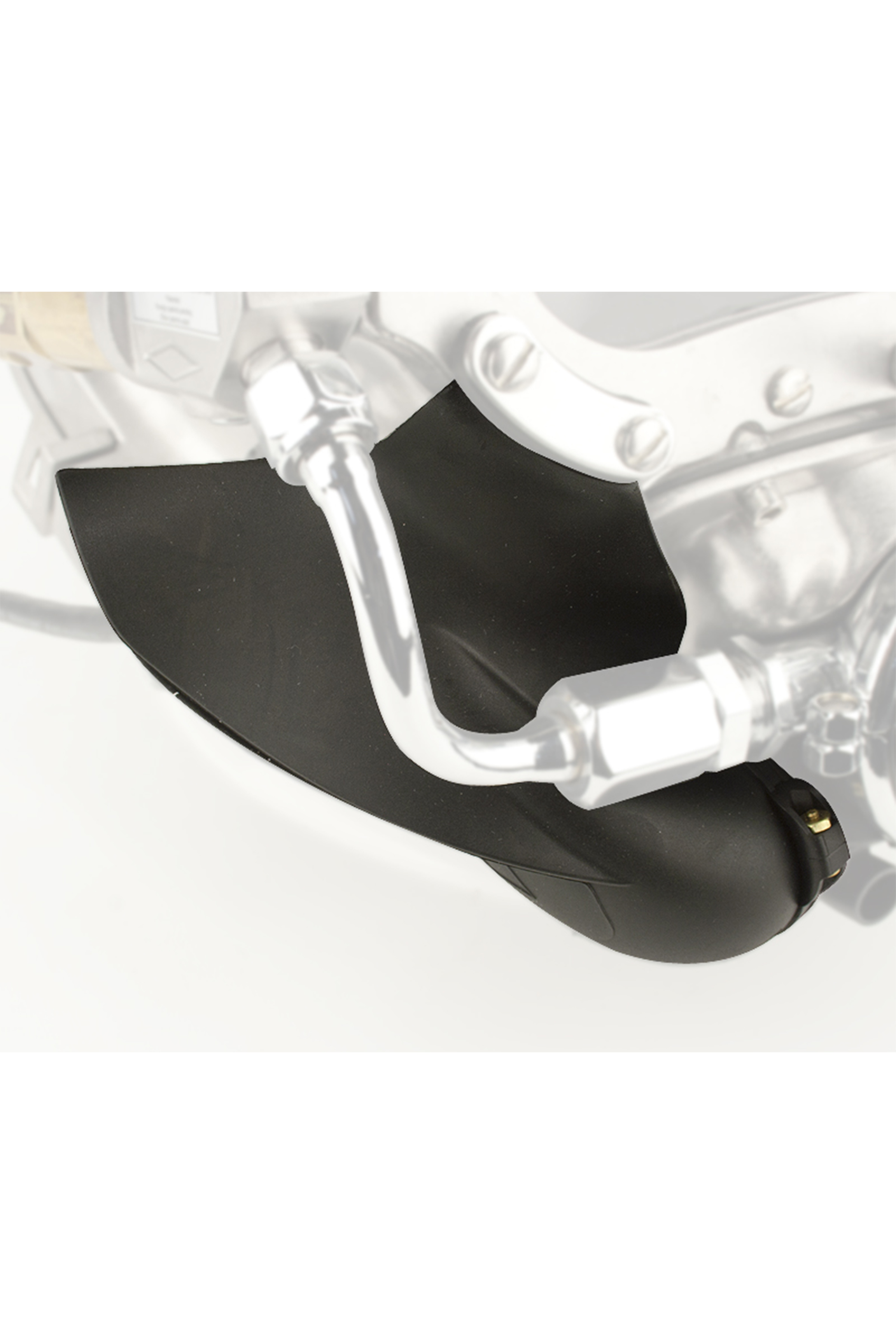

Bubble deflecting Whisker wings keep bubbles further from face port and ears, improving visibility and decreasing internal noise. |

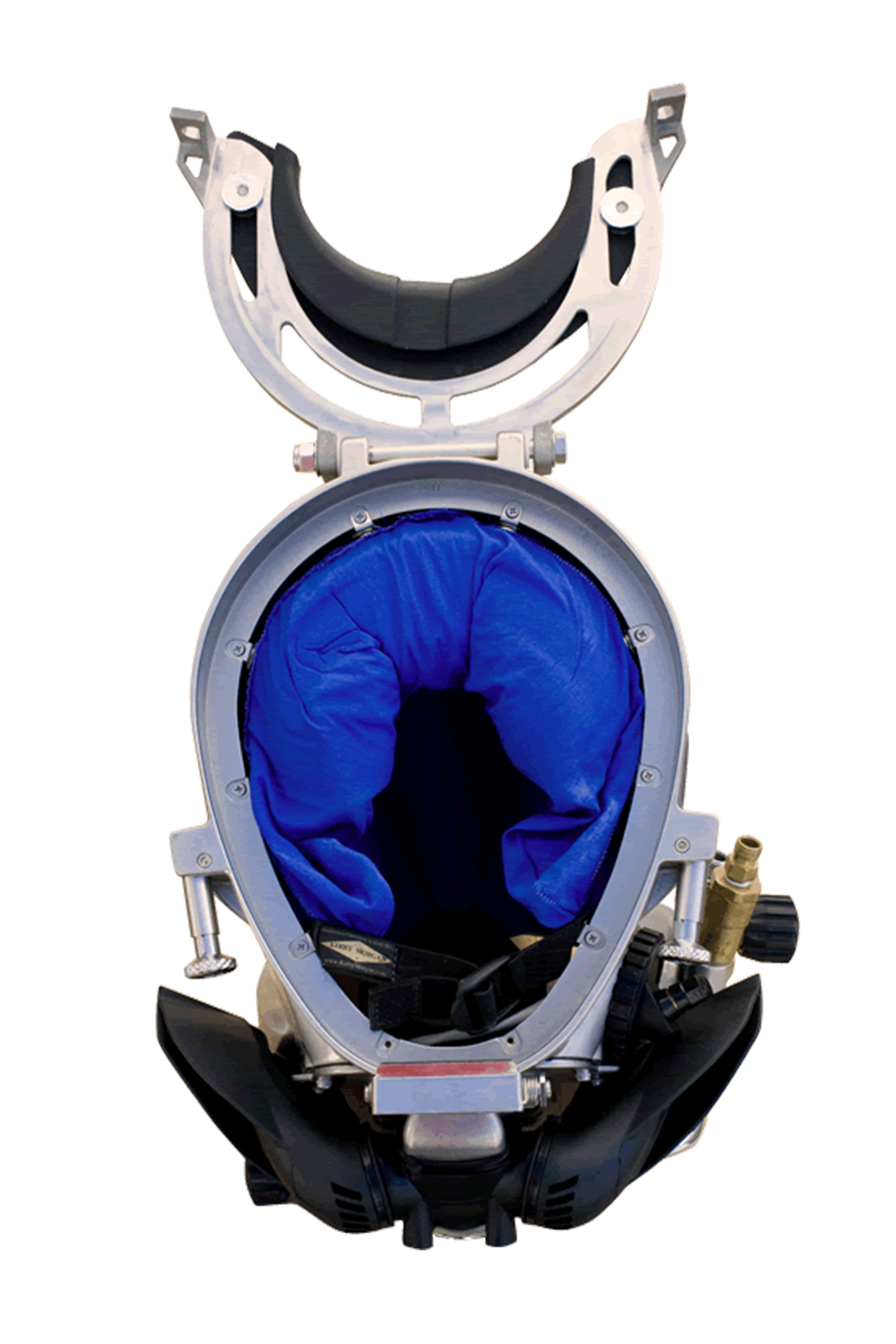

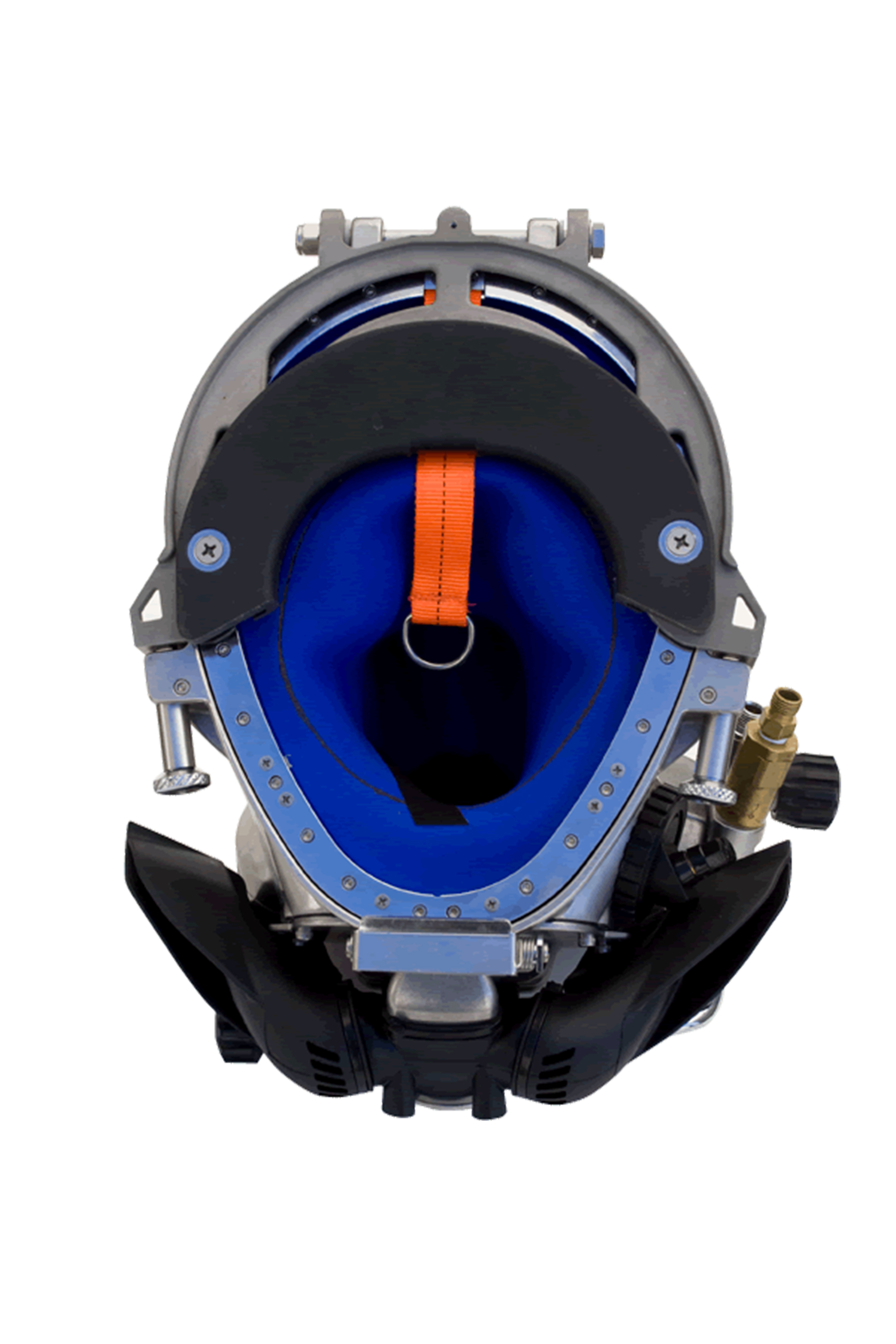

| Helmet Bottom | Helmet Inside |
|
Neck Dams: |
|
| Item | Kirby Morgan® order code |
| Kirby Morgan® 97 helmet with posts | 500-700 |
| Kirby Morgan® 97 helmet with MWP | 500-701 |
| Type | Document | Download |
| Datasheet | Kirby Morgan® 97 helmet |
