The Life Support System Test Facility (LSTF) is a fully integrated laboratory system offering the capability to conduct tests at the surface and immersed in temperature controlled water to a maximum depth of up to 500msw (or deeper upon request).
Capability:
Enables precise testing to extreme conditions so design engineers can ensure the effectiveness of critical equipment.
- Diving depth control with water chilling and heating
- Breathing air heated & humidified with adjustable breaths per minute and tidal volume
- Valve cracking effort, exhale resistance and work of breathing
- Fast response gas analysis with CO2 injection and O2 dilution simulating respiration
- Hydrostatic imbalance testing of rebreathers
- Cold water chiller
- Breathing air heated & humidified
- Buoyancy Control Device Testing
Further Information
- Suitable for CE marking performance tests of defence, commercial and recreational SCUBA equipment
- Verify whether equipment meets or exceeds dynamic breathing performance requirements
- Define the limits of product performance under diverse operating conditions
- Reduce costs of product testing with real time results achieved accurately and efficiently every time
- View the performance of breathing apparatus under test with real time data acquisition and display
- Large test vessel diameters up to 1000mm and internal variable orientation accommodate twin cylinder SCUBA equipment, rebreathers, diving masks, helmets, bandmasks or other equipment
- Intuitive console controls, clear computerised virtual instruments and printable test certificates
| Test demand regulators | EN250:2014 |
| Test rebreathers | EN14143:2013 |

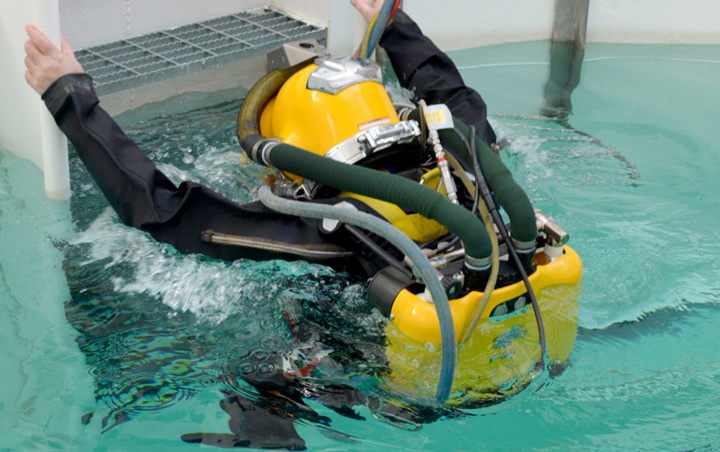

| Test helmets | EN15333-1:2008 |
| US Navy | Unmanned testing procedures |
| Conditioned breathing gas | 28+/- 2°C and 32 +/- 4°C, >90%RH |
| Simulate respiration | O2 uptake and CO2 injection * |
| Test environment temp control | +2°C to +34°C of ambient water |
| Breathing rate | Selectable 10 to 40 breaths per minute |
| Tidal volume | Variable sinusoidal 1.0 – 4.5 litres |
| Simulated depth, msw | 100 | 200 | 100 | 200 | 500 | |
| Test vessel internal dims |
Diameter (mm) | 610 | 610 | 1000 | 1000 | 1000 |
| Height (mm) | 1300 | 1300 | 1300 | 1300 | 1300 | |
| LSTF model | 100 - 600 | 200 - 600 | 100 - 1000 | 200 - 1000 | 500 - 1000 |
| Type | Document | Download |
| Flyer | ANSTI LSTF Flyer | 2023 ANSTI LSTF datasheet.pdf |
