Our IMCA compliant 18-man Portable Hyperbaric Reception Facility (HRF) can support diving operations across the whole of the North Sea.
Suitable for accommodating divers evacuated from a diving system by means of a Self Propelled Hyperbaric Lifeboat (SPHL) or Hyperbaric Rescue Chamber (HRC), this Portable HRF provides a practical hyperbaric rescue solution for operators working in remote locations.
The HRF was designed and manufactured by JFD. DDC1 (12.17m (L)) is a twin lock skid mounted and enclosed saturation living chamber consisting of the main lock (ML) and entry lock (EL). DDC1 has a depth capacity of 300m and allows habitation for up to 18 rescued divers during decompression and a medical attendant if required.
Portable Hyperbaric Reception Facility

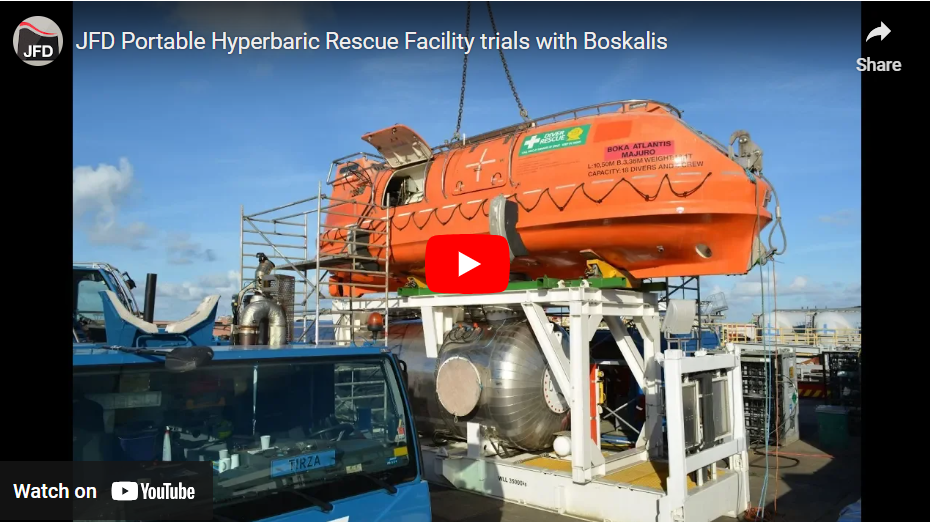

The HRF system is designed to be mated to a bottom or side-mated SPHL, or a side-mated HRC.
JFD hold Lloyds approved forgings and plate in stock to allow suitable spool pieces and clamps to be rapidly fabricated to suit clients particular hyperbaric evacuation chambers.
-
Chamber designed under PD5500 pressure vessel design code, and manufactured under full Lloyds survey
-
Viewports designed and certified toASME PVHO-1-2007
-
Full Lloyds design review and manufacture certification to Lloyds Rules for Submersibles and Diving Systems July 2016
-
Compliant to IMCA D024 Design for Saturation Diving Systems (Bell) July 2014 (where appropriate)
-
Compliant to IMCA D053 Design for the hyperbaric reception facility (HRF) forming part of a hyperbaric evacuation system (HES) April 2014
-
Full system certification and manual package
-
All electrical wiring to Australian Standards
Weight:
- 40ft flat rack with DDC: 32te
- Control Cab Container: 12te
Transportability
The control container is a DNV 2.7-1 offshore rated container. The chamber is mounted in a 40ft modified ISO flatrack for ease of transportation.
The scope of supply includes:
-
HRF Chamber and flatrack skid fully outfitted
-
HRF Control van complete
-
Interconnecting hoses and cables
-
Certification and manual package
The scope of supply excludes:
-
Manufacture of spoolpieces and clamps to suit client
-
Hyperbaric Evacuation Chamber / SPHL
-
Manufacture of reception skid if required to suit client
-
Hyperbaric Evacuation Chamber / SPHL
