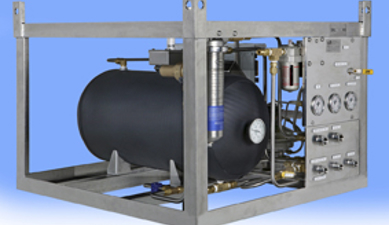

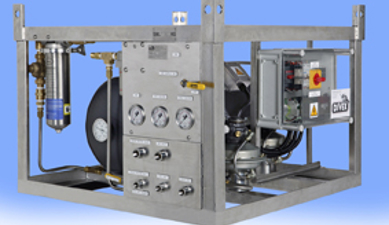

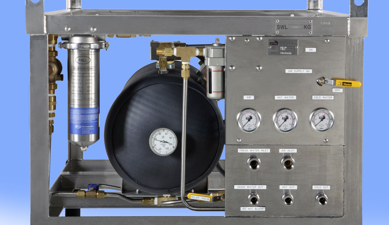

JFD's Kinergetics PWS-01 potable water system provides a simple, reliable, fully automatic self-contained source of hot and cold domestic water for saturation diving systems.

The system uses air-powered ratio pumps for constant pressure ring main (or direct) supply and only delivers on demand. The pumps stop cycling when equilibrium pressure is attained. By using local depth-tracking regulators, the system will also supply chamber compartments at different depths.



Further Information

Delivery pressure

10 bar to 68 bar

Hot delivery

7.5 litres/minute

Cold delivery

7.5 litres/minute

Thermostat setting

65oC (factory)

Hot water range

30oC to 70oC adjustable

Heating capacity

9 kW

Hot water tank

60 litres

Power requirement

440V 1 Ph 60 Hz 20 A (380V available)

Drive air

2.8m3/minute at 8 bar

Document

Document type

Download

Kinergetics potable water system PWS-01

Datasheet

KI-MDS-565 R1

Potable water system series PWS-01 & remote panel option (Part number: KI40008AA, KI40008AB & KI40008AAABS)

Operation and maintenance

KI-OM-5672 R7

Item

Order Code

Kinergetics potable water system PWS-01 440VAC

KI40008AA

Kinergetics potable water system PWS-01 380VAC

KI40008AB

Kinergetics potable water system PWS-01 440VAC ABS approved

KI40008AAABS

Remote control 19” rack mount panel for PWS-01

KI2087

Remote control upgrade it for PWS-01

KI2090

Spares kit for 380VAC PWS-01

KI40008200

Spares kit for 440VAC PWS-01

DOKI02429-1-KIT
