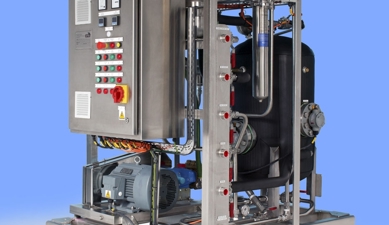

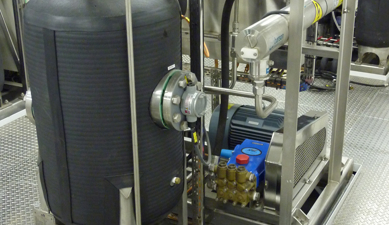

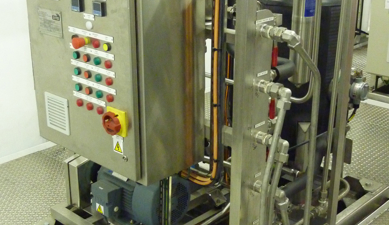

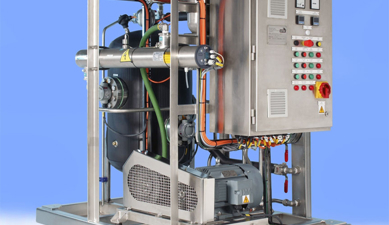

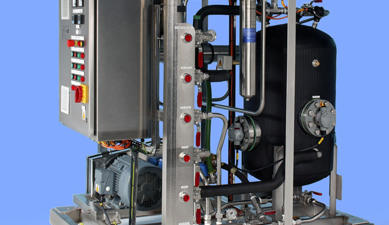

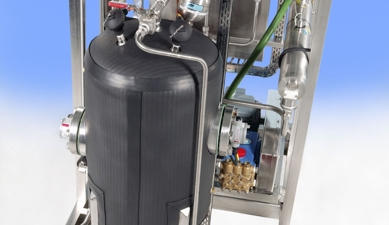

The Divex potable water system for ring main supply is designed to provide hot and cold water for toilets, showers and basins in large saturation diving systems.
Two potable water machines coupled to hot and cold ring mains work automatically once set-up and started. The system will provide 100% redundancy.
Ring Main Water System
- Potable water entering the skid is filtered to 5 μm and UV sterilised before being fed to the pump.
- The pump boosts the pressure to 45 bar at a maximum rate of 60 litre/min, the actual pumped flow will depend on demand and will be controlled by the variable speed drive.
- After the pump, the water is split into hot and cold streams as well as to a 12 litre (4 litres x 3) accumulator assembly.
- The hot water stream is heated and controlled to 55°C in the high-pressure heater tank and then fed in to the hot water ring main.
- The system is designed in such a way as to create a thermosyphon effect in the hot water ring main, where cooler hot water returns to the skid for reheating which will keep the ring main warm at all times.
- The cold water is piped directly in to the cold water ring main.
|
Pump (1 off) |
CAT type 1540E |
|
Voltage |
440V; 60Hz; 3 phase |
|
Variable speed drive |
Micro master 440 siemens 7.5kW |
|
Head (max) |
45 bar |
|
Flow |
60 litres / minute (max) |
|
Heater (3 off) |
3" watlow process heater |
|
Voltage |
440V; 60Hz; 3 phase |
|
Power |
6 kW each |
|
Control temperature setting |
55°C |
|
Safety temperature controller setting |
75°C |
|
Heated tank volume |
150 litres |
|
Fluid |
Potable water |
|
Fluid inlet / outlet connections |
1 NPT female (located on side of frame) |
|
Power requirement |
440V; 60Hz; 3 phase; 35A |
|
Heating capacity |
18 kW |
|
Frame construction |
Welded grade 316 stainless steel |
|
Tank construction |
Welded 316L, built to ASME VIII DIV 1 |
Unit Dimensions
|
Length |
1625 mm |
|
Width |
1100 mm |
|
Height |
1650 mm |
|
Weight (dry) |
750 kg |
|
Document |
Document type |
Download |
|
Kinergetics ring main 2 potable water system |
Datasheet |
|
|
Kinergetics ring main 2 potable water system PWS-RM2 (Part number: PWS100AA) |
Operation and maintenance |
|
|
Potable water system, interface information |
Drawing |
|
Item |
Order Code |
|
Potable water system ring main 2 |
PWS100AA |
